Prihranite! Z zmanjšanjem zaloge rezervnih delov!
Ena letev dve funkcije.
Kako je to mogoče?
Z izmenljivim elektronskim modulom plug-in definirate funkcijo oddajnik ali sprejemnik. Neverjetni prihranki za podjetje. V skladišču samo ena letev in dve možni funkciji z plug-in moduli B-basic in E izvedbo!

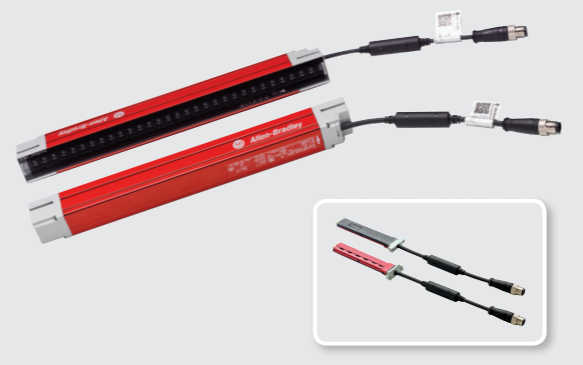

Video prikaz GuardShield 450L
Lastnosti varnostnih zaves 450L-E
- patentirana tehnologija vam omogoča uporabo vsake enote kot oddajnik ali sprejemnik z uporabo inovativnega vtičnega modula.
- napredne funkcije v primerjavi s serijo 450L-B), kot so kaskadna vezava in integrirani funkciji muting in blanking.
- Integrirane funkcije lahko enostavno in hitro konfiguriramo z DIP stikali ali programsko opremo, kar bistveno skrajša čas zagona. Omogočena je tudi funkcija za nadzorzunanjih naprav (EDM)
- izboljšana intergrirana tehnologija laserske poravnave zagotavlja hitro namestitev in zanesljivo delovanje.
- Zagotavlja aktivno zaščitno polje vzdolž celotne dolžine zavese.
- kompaktno ohišje 30 x 30 mm.
- širok razpon varnostnega področja od 150... 1950 mm v korakih po 150 mm.
- zaznavanje prsta (resolucija 14mm) na oddaljenosti 0,5 do 9 m.
- zaznavanje roke (resolucija 30 mm) na oddaljenosti 0,9 do 16,2 m.
- kaskadna vezava omogoča vezavo večjega števila varnostnih zaves v serijo
- diagnostika in odpravljanje težav z brezplačno programsko opremo
- stopnja zaščite IP65.
- TUV certifikat type 4 v skladu z IEC 61496-1/2, do PLe (kategorija 4) v skladu z ISO 13849-1, SIL3 PLe v skladu z IEC 61508, SILcl 3 v skladu z IEC 62061.
Za več informacij pokličite 03-898-3702 ali pošljite e-povpraševanje >> peter.meh@fbselektronik.com
PRIPOROČILO STROKOVNJAKA: (prihranek in prostorska rešitev pri rezervnih delih v skladišču fizično 1 letev = uporaba kot oddajnik ali sprejemnik z 1x plug-in UNI modulom)
Opis: Namesto 1 para svetlobnih zaves imate na zalogi 1x letev in 1x UNI plug-in modul. V primeru odpovedi zamenjate UNI modul in nastavite funkcijo (oddajnik ali sprejemnik). Prihranek časa: Brez demontaže svetlobnih zaves in dodatnega zamudne poravnave.
| Tip letve: | Opis: | Info o ceni/dobavi |
|
450L-B4FN0150YD
|
450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 150 mm (5.91 in) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN0300YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 300 mm (11.82 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN0450YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 450 mm (17.73 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN0600YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 600 mm (23.64 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN0750YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 750 mm (29.55 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN0900YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 900 mm (35.46 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN1050YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 1050 mm (41.37 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN1200YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 1200 mm (47.28 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN1350YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 1350 mm (53.19 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN1500YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 1500 mm (59.1 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN1650YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 1650 mm (65.01 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN1800YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 1800 mm (70.92 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4FN1950YD | 450L-B Standard Safety Light Curtain, 14mm (0.55 in.) Resolution, 1950 mm (76.83 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN0150YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 150 mm (5.91 in) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN0300YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 300 mm (11.82 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN0450YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 450 mm (17.73 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN0600YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 600 mm (23.64 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN0750YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 750 mm (29.55 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN0900YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 900 mm (35.46 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN1050YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 1050 mm (41.37 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN1200YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 1200 mm (47.28 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN1350YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 1350 mm (53.19 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN1500YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 1500 mm (59.1 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN1650YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 1650 mm (65.01 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN1800YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 1800 mm (70.92 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-B4HN1950YD | 450L-B Standard Safety Light Curtain, 30mm (1.18 in.) Resolution, 1950 mm (76.83 in.) Protected Height | Pridobi ceno/čas dobave |
|
PRIPOROČILO STROKOVNJAKA!
Za lažjo nastavitev! |
Opis: | Info o ceni/dobavi |
| 450L-E4FL0150YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 150 mm (5.91 in) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL0300YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 300 mm (11.82 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL0450YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 450 mm (17.73 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL0600YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 600 mm (23.64 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL0750YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 750 mm (29.55 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL0900YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 900 mm (35.46 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL1050YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 1050 mm (41.37 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL1200YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 1200 mm (47.28 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL1350YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 1350 mm (53.19 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL1500YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 1500 mm (59.1 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL1650YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 1650 mm (65.01 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL1800YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 1800 mm (70.92 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4FL1950YD | 450L-E Enhanced Safety Light Curtain, 14mm (0.55 in.) Resolution, 1950 mm (76.83 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL0150YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 150 mm (5.91 in) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL0300YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 300 mm (11.82 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL0450YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 450 mm (17.73 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL0600YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 600 mm (23.64 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL0750YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 750 mm (29.55 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL0900YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 900 mm (35.46 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL1050YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 1050 mm (41.37 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL1200YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 1200 mm (47.28 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL1350YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 1350 mm (53.19 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL1500YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 1500 mm (59.1 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL1650YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 1650 mm (65.01 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL1800YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 1800 mm (70.92 in.) Protected Height | Pridobi ceno/čas dobave |
| 450L-E4HL1950YD | 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 1950 mm (76.83 in.) Protected Height | Pridobi ceno/čas dobave |
Za delovanje in priklop 450L zvarnostnih zaves potrebujete:
Plug in modul za vstavitev v ohišje letve serije 450L
Moduli so namenjeni za priklop letev varnostne svetlobne zavese serije 450L. Način montaže (vstavi se v ohišje letve 450L in z vijaki pritrdi). Obstajajo 5 polna (basic izvedba) in 8 polna napredna izvedba (ločen oddajnik modul in sprejemnik modul ali pa UNI modul s funkcijo oddajnik/sprejemnik glede na nastavitev DIP stikal).
450L-APT-PW-5 (oddajnik modul), M12 5-pin (Oddajnik)
450L-APR-ON-5 (sprejemnik modul), M12 5-pin, On/Off preklop izhoda
8 polna izvedba za E modele svetlobnih zaves 450L
450L-APT-PW-8 (oddajnik modul), M12 8-pin1
450L-APR-ED-8 (sprejemnik modul), M12 8-pin, reset mode, EDM, scanning range.
PRIPOROČILO STROKOVNJAKA: (prihranek pri rezervnih delih 1 modul = funkcija oddajnik ali sprejemnik)
450L-APU-UN-8 Univerzalni modul), M12 8-pin, reset mode, EDM, scanning range.
