FBS elektronik d.o.o. represents Datasensor GmbH in Slovenia, Serbia, Bosnia, Montenegro and Macedonia.

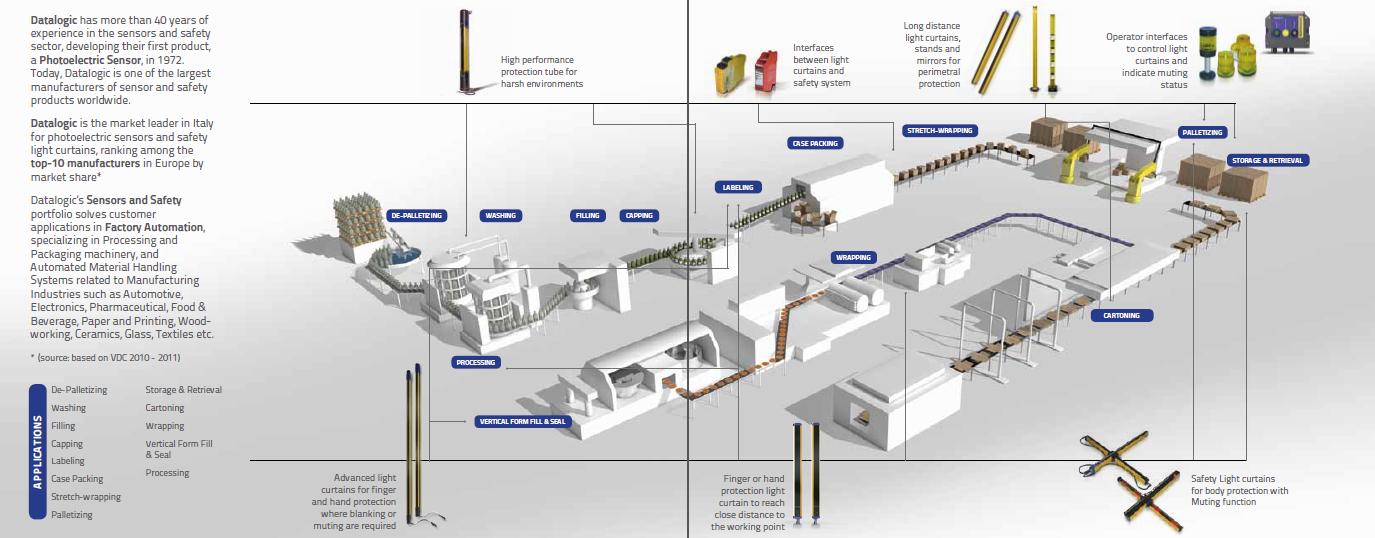

It offers a complete line of type 2 and type 4 safety light curtains for machine safeguarding and access control in dangerous areas, with basic and advanced functions, such as integrated muting, override, blanking, cascadable, configurable models.

Datasensor was founded at the end of 1999 in order to widen and consolidate its position in the fields of research, development and distribution of photoelectronic sensors as well as sensors for measurement and inspection for the industrial automation sector. The product range will be completed by an extensive assortment of inductive, capacitive and ultrasonic sensors as well as temperature controllers. Until the year 1999 this product range was distributed by Datalogic as the leader on the market. Datasensor is a market-leading company in the field of photoelectric sensors, sensors for measurement and inspection, safety devices, vision systems and temperature controllers. Since the combining of DATASENSOR and DATALOGIC AUTOMATION in October 2008, we have widened our product range with barcode scanners and now we can offer you complete solutions for the industrial automation. In the near future we will replace successively the datasheets and particularly the product logo by the DATALOGIC logo.



SAFETY ANYTIME ANYWERE

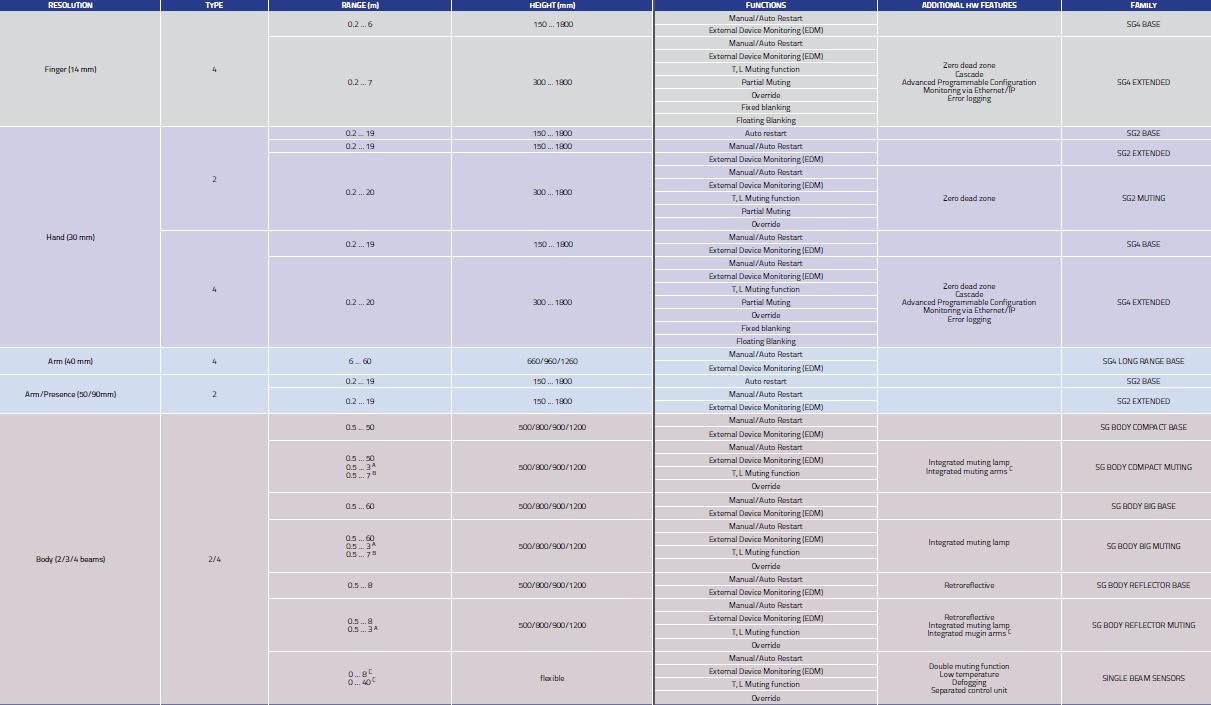

SELECTION GUIDE

DEFITION	VALUES					APLICATION
PL - performance level	a	b	c	d	e
DETECTION CAPABILITY
FINGER PROTECTION	14 mm
HAND PROTECTION		30mm
ARM PROTECTION/PRESENCE			50mm	90mm

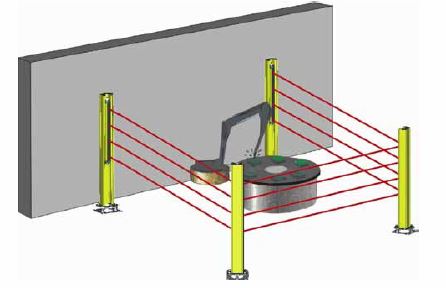

BODY PROTECTION	2 BEAM	3 BEAM	4 BEAM
DETECTION ZONE
HEIGH	150 mm ....1800 mm
OPERATION RANGE	0,2 m .... 60 m
ZERO DEAD ZONE	YES		NO
RETROREFLECTIVE LIGHT CURTAINS	YES		NO
CASCADING	YES		NO
RESPONSE TIME	od 8 ms do 33 ms
FUNCTION	MANUAL		AUTOMATIC
EDM function	YES		NO

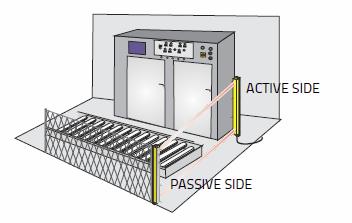

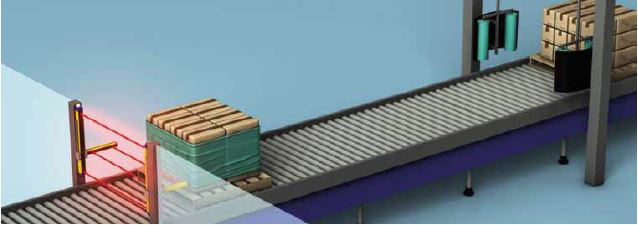

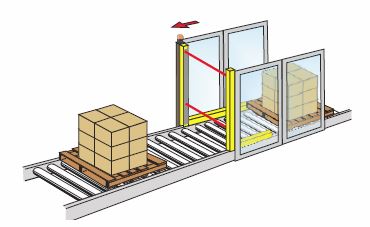

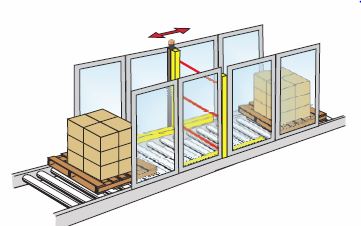

MUTING
TYPE OF MUTING	T		L
INTEGRATED MUTING LAMP	YES		NO
PARTIAL MUTING	YES		NO
OVERRIDE	YES		NO
BLANKING
FIXED BLANKING	YES		NO
FLOATING BLANKING	YES		NO
REDUCED RESOLUTION	YES		NO
SW CONFIGURATION	YES		NO



	Safety light curtain (SG2-xx-yyy-OO-y-x) - operating range 0,2m .... 60 m - detection field 150 mm .... 1800mm - resolution 14mm, 30mm, 50mm, 90mm - perimeter 2 beam, 3 beam, 4 beam - integrated MUTING function - solution in CASCADE option - DONGL connection to ethernet - SW programmble - safety level SIL2, SIL3 ...	More information
	Safety relay - CS-ME with EDM function (3NO, 1NC  EDM) - SE SR2 TYPE 4 contact: 3NO,1NC	More information
	Accessories  - laser - additional tube for IP69K - muting lamp - mounting kit ...	More information
	Process light curtains for automation - type DS1 detection field field 100mm, 150mm in 300mm with 4mm resolution  - type DS2 detection field field 150mm .... 2500mm with resolution 12 mm ....  25 mm - typep DS3 detection field field 150 mm, 300 mm, 450 mm and 600 mm	More information
