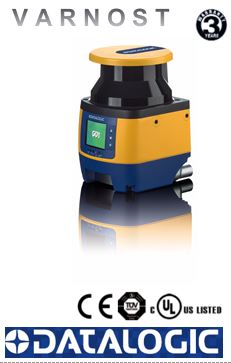

SAFETY SCANNER SENTINEL SLS

SAFETY STANDARDS:

- EN 61496-1 type 3; EN 13849-1 PL-d; IEC 61508 SIL2

BENEFITS:

- 5,5 m safety zone with angle 275°

- up to 40m detection zone with angle 275°

- I/O connection with 8-pins M12 connection

- dimensions: 102mm/112,5mm/152mm

- 3 field of working (1x safety zone + 1x alarm zone / for each field)

- function hand/automatic restart

- color status display of scanner

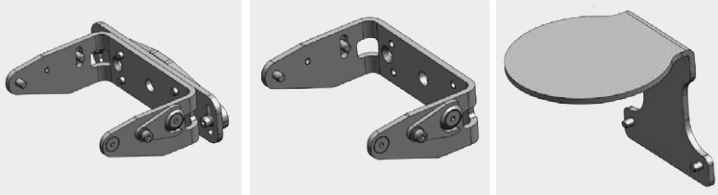

- metal fixing brackets

- static scanning of zone

- dinamic scanning of zone

MODELS:

SLS-B5

SLS-SA5-08

Field of view: 72m², Turn off area: 0,05...5,5m

angle of scanning 275°, Alarm zone detection: 0,05...40 m, Response time min. 62 ms,

Response time max. 482 ms power supply 24 Vdc ± 20%, Number of fields: 6x,

Safety output 2x OSSD, Temperature working ambient 0....+50°C, mechanical protection IP65

Send inquiry for special price of SLS-SA5-08

APLICATIONS:

- robot cells

- automatic paletizers

- mobile industry robots

- autopilot cargo cars – AGV/AGC

- process lines in production

- ….

INDUSTRY:

packing, wood, ceramics, automotive industry ...

device is working (OSSD outputs in status GO)
